máquinas talladoras de engranaje usadas para la venta (205)

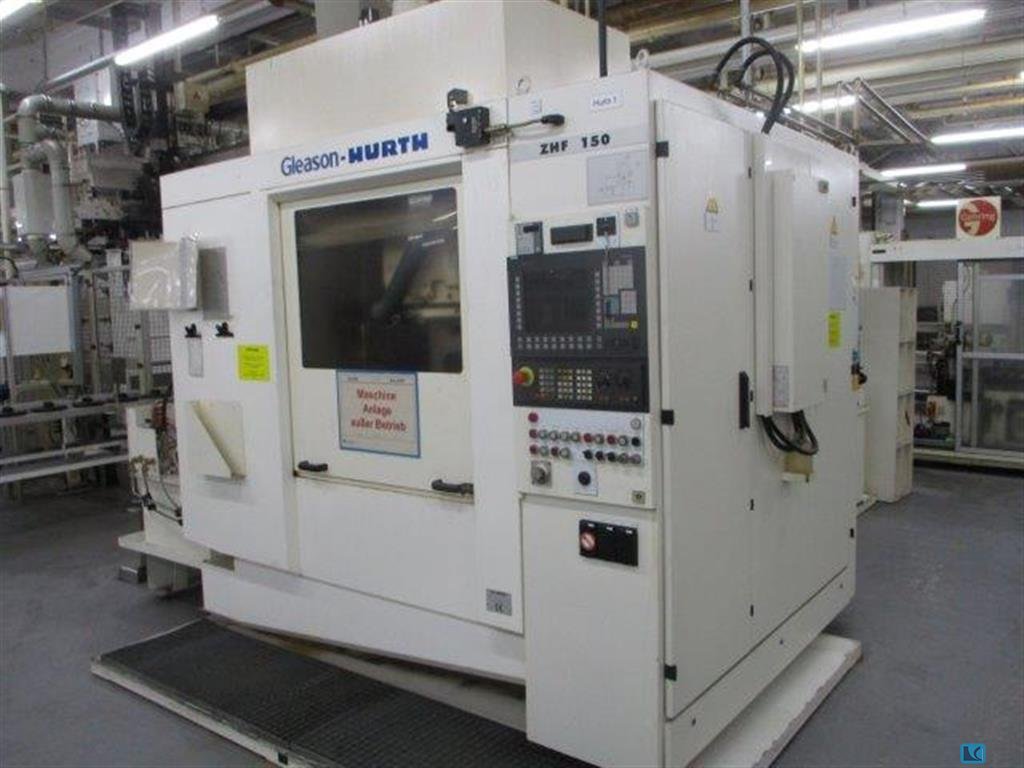

max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm

max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm

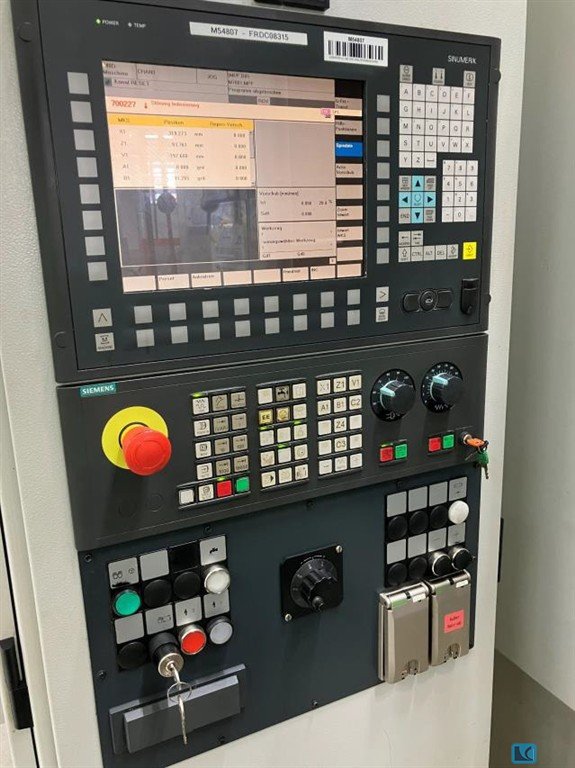

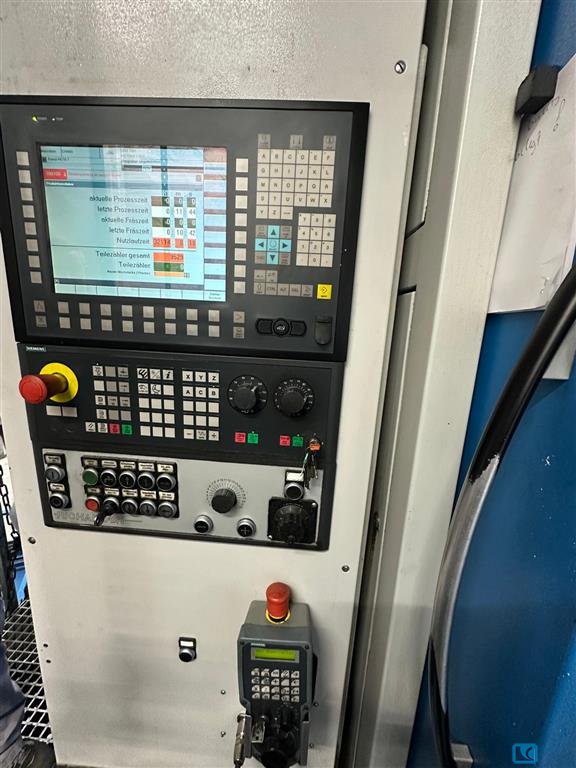

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden

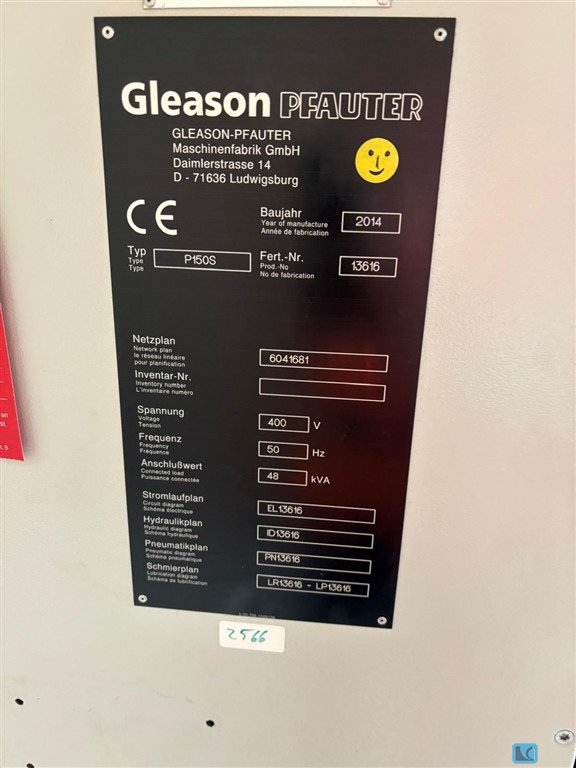

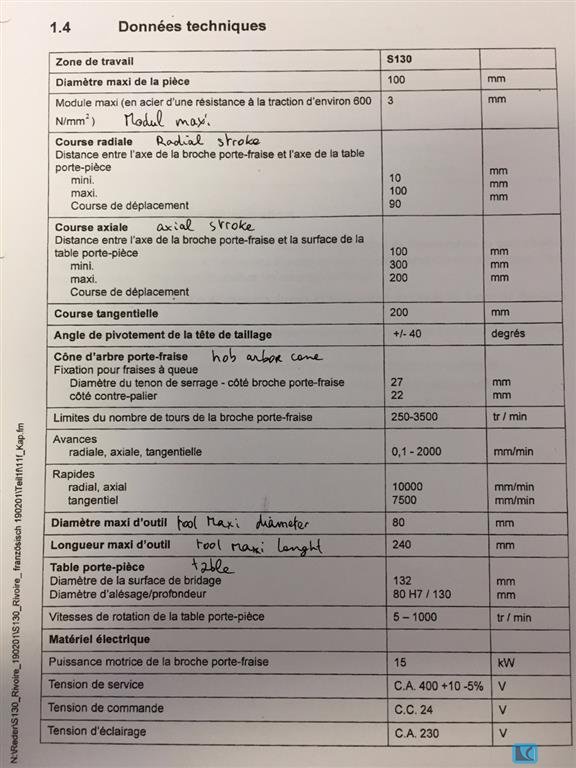

max. wheel diameter:130 mmgear width:170 mmmax. module:3 min. module:0,5 total power requirement:48 kVAweight of the machine ca.:9 tdimensions of the machine ca.:7,64 x 3,14 x 3,25 mFor technical data, see PDF-File enclosed

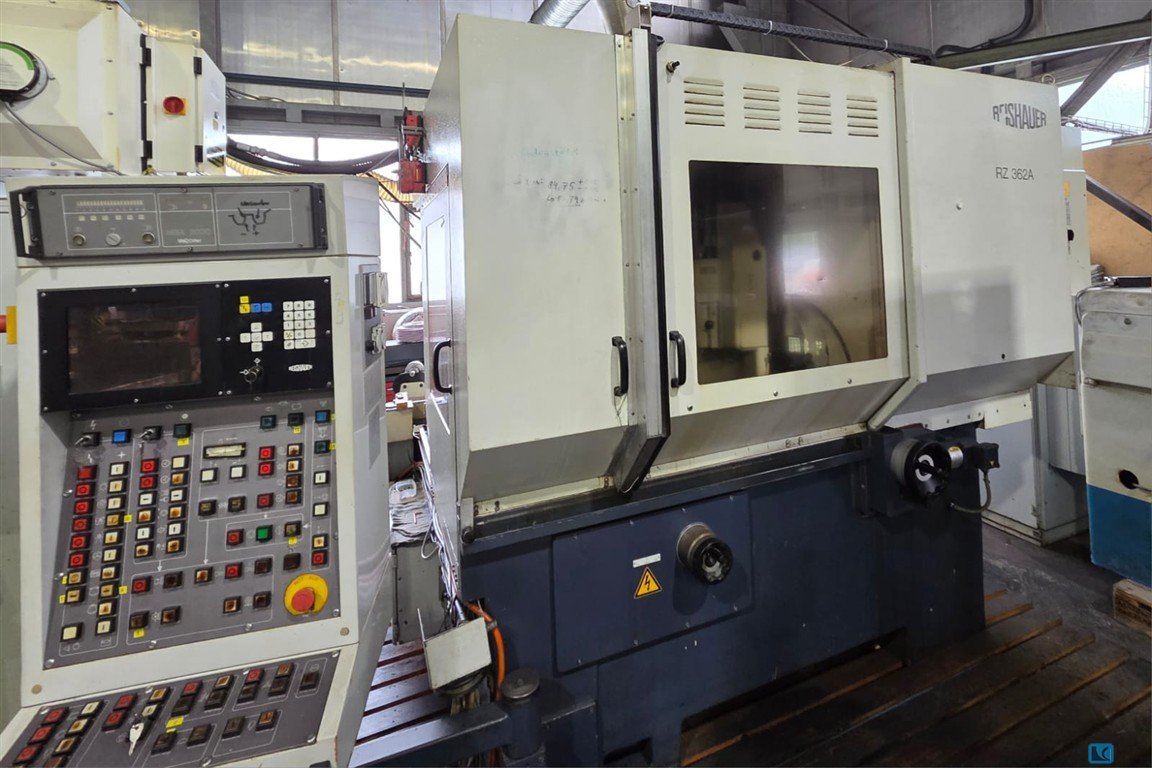

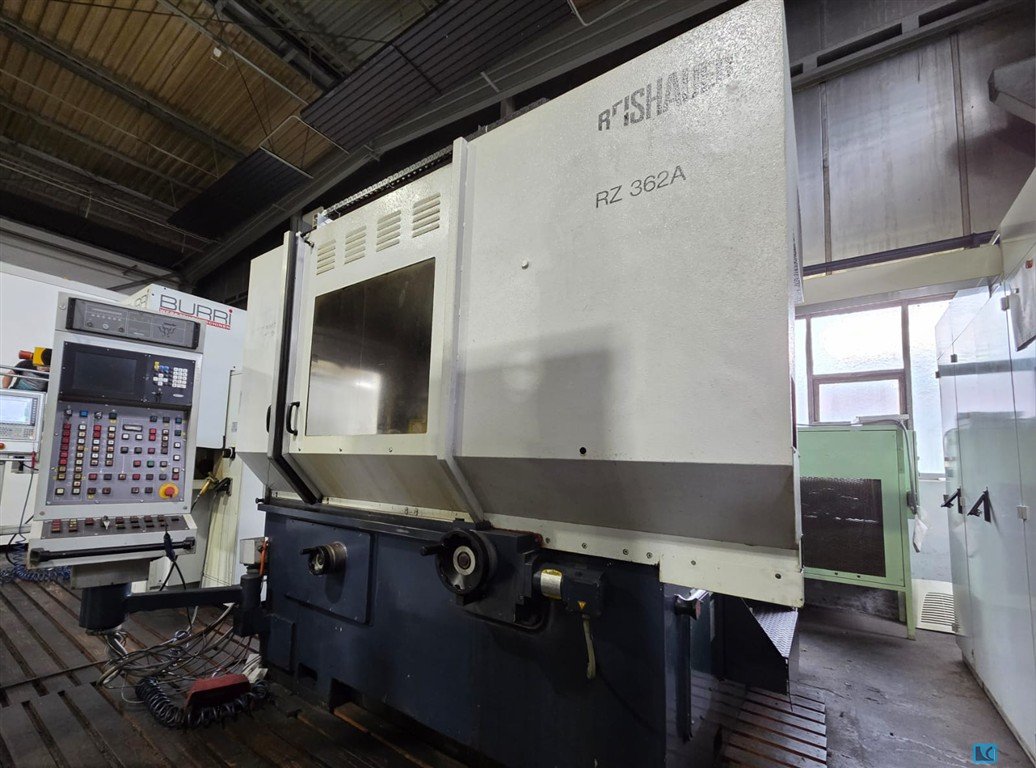

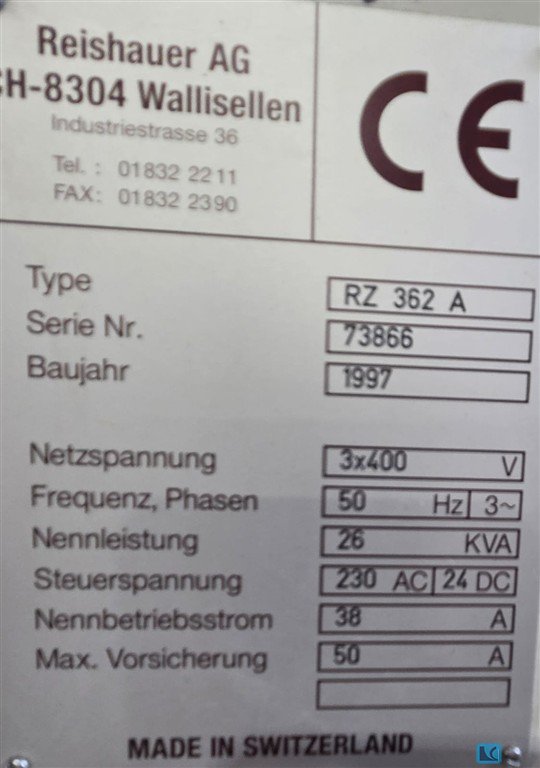

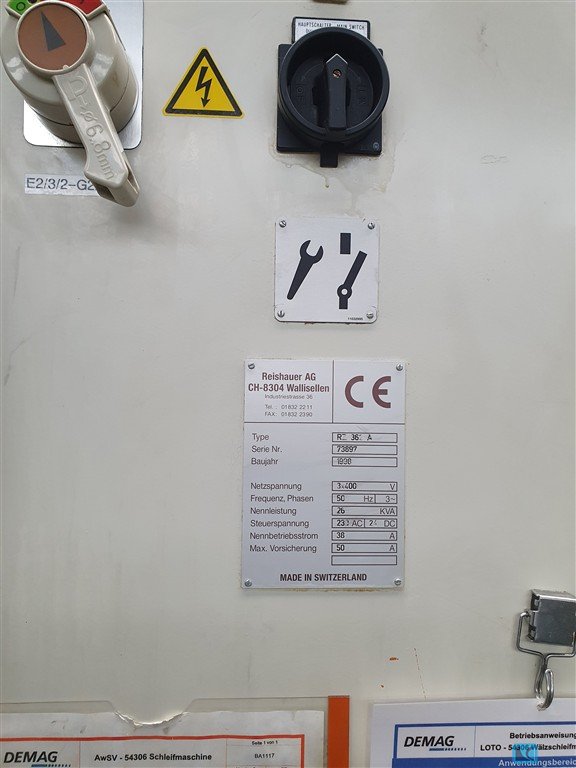

Dressing diameter: Planing width: min. module: for Reishauer RZ150

max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...

max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...

max. wheel diameter:50 mmgear width:20 mmmax. module:4 mmmin. module:0,1 mmtotal power requirement:12,5 kWweight of the machine ca.:4000 kgdimensions of the machine ca.:2,2 x 2,5 x 2,3 mworkpiece length - max.:300 mm

weight of the machine ca.:4 t

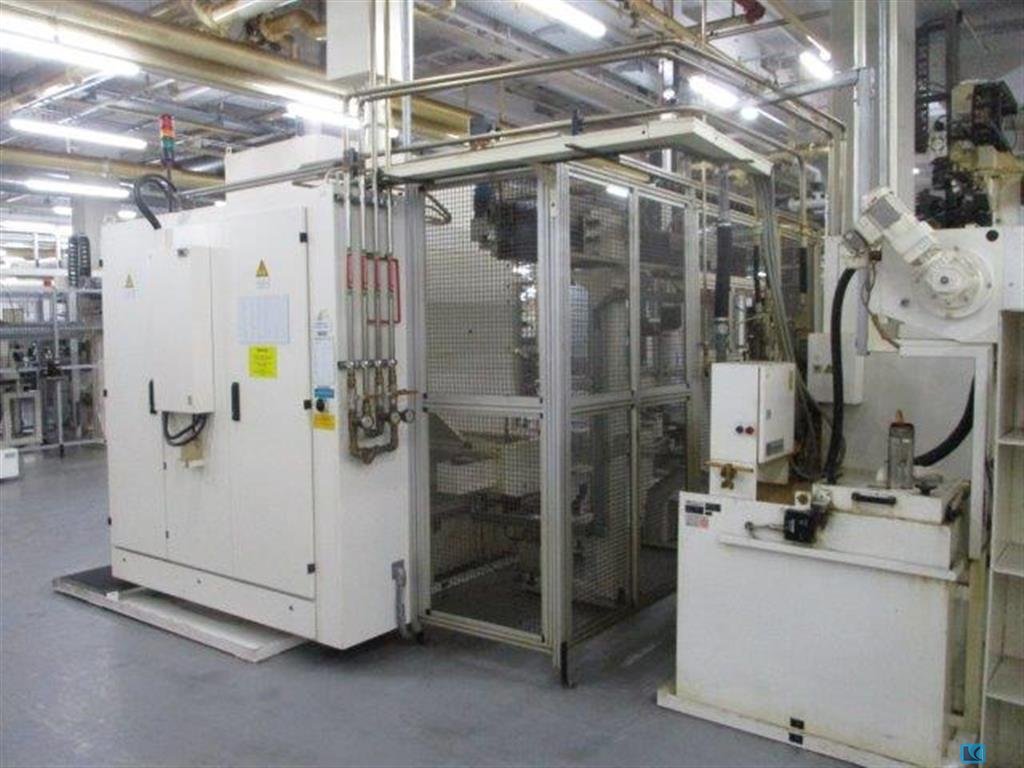

total power requirement:413 kWInduction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mmX (electromechanical) 200 mmMaximum part diameter 600 mmMaximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30

max. wheel diameter:260 mmgear width:320 mmmax. module:5 weight of the machine ca.:21 tdimensions of the machine ca.:8,71 x 5,97 x 3,49 mno. of teeth:1...999 max. helix angle:+45/-45 °pitch min.:0,1 mmpitch max.:1000 mmX-axis:345 mmy-axis:250 mmZ-axis:320 mmb-axis:360 °c-axis:360 °Coolant is not available. It was central and there is only a booster pump without filtering. For loading system there is a 2-axes robot with workpiece conveyor.

max. wheel diameter:280 mmmax. module:7 weight of the machine ca.:13 ttable turning speeds:100 U/mintable diameter:250 mmmin. number of teeth:4 hob turning speeds:1500 U/minmax. hob diameter:160 cutter length max.:230 mmMachine in good condition.Available 01.08.2024

max. wheel diameter:200 mmgear width:60 mmmax. module:7 weight of the machine ca.:15 ttable diameter:180 mmtable turning speeds:100 U/minhob turning speeds:750 U/minMachine in good condition, without feed, without automationAvailable 24.08.2024

max. wheel diameter:900 mmmax. module:10 weight of the machine ca.:8200 kos.hob dia. - max.:190 mmcutter length max.:320 mmmilling spindle speeds (infinitely variable):13-80 U/minworkpiece length - max.:750 mmmax. workpiece diameter:150 mmCounter holder milling mandrel is missing

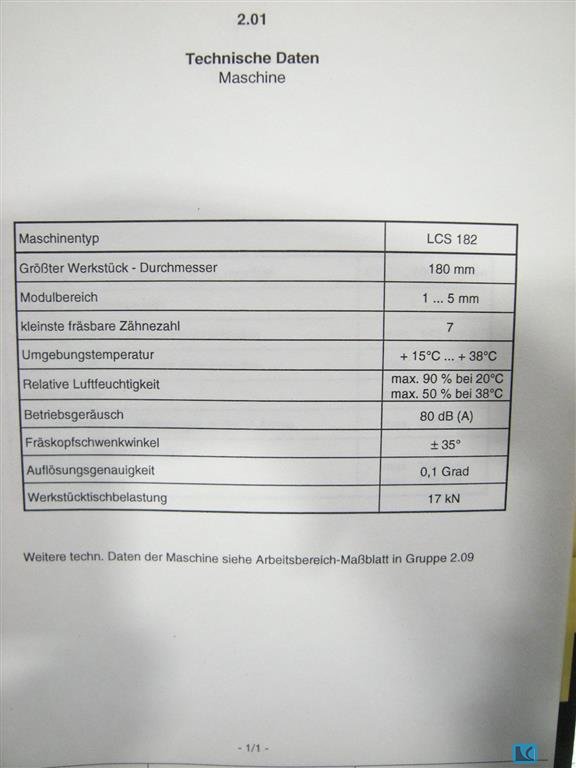

max. wheel diameter:280 mmmax. module:5 min. module:1 min. number of teeth:7 toolpiece turning speed range:4.000...10.000 U/mintool length:210 mmCBN

max. wheel diameter:200 mmgear width:50 mmmax. module:6 table diameter:168,14 mmboring diameter:65,532 mmweight of the machine ca.:11 ttable turning speeds:0-1.000 U/minlength of stroke min./max.:0-70 mmno. of strokes:180-1.800 StückThis machine can be used to make tandler gears. However, for helical gearing, a helical guide is also required.

max. wheel diameter:300 mmgear width:110 mmmax. module:6 weight of the machine ca.:10,5 t

max. wheel diameter:210 mmtotal power requirement:60 kWweight of the machine ca.:8 tdimensions of the machine ca.:2,85 x 2,60 x 1,80 mgrinding slide feed:700 mmgrinding slide feeds:1-15.000 m/minmax. workpiece weight:150 kgcentre height:260 mmgrinding wheel diameter:240 mm

rotor dia:30-500 mmhobbing length:500-1000 mmtotal power requirement:80 kWweight of the machine ca.:15 tdimensions of the machine ca.:3,6 x 2,5 x 3,0 mmax. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

max. wheel diameter:180 mmmax. module:7 hob turning speeds:200-2000 U/minmin. number of teeth:4 excluding conveyor belt

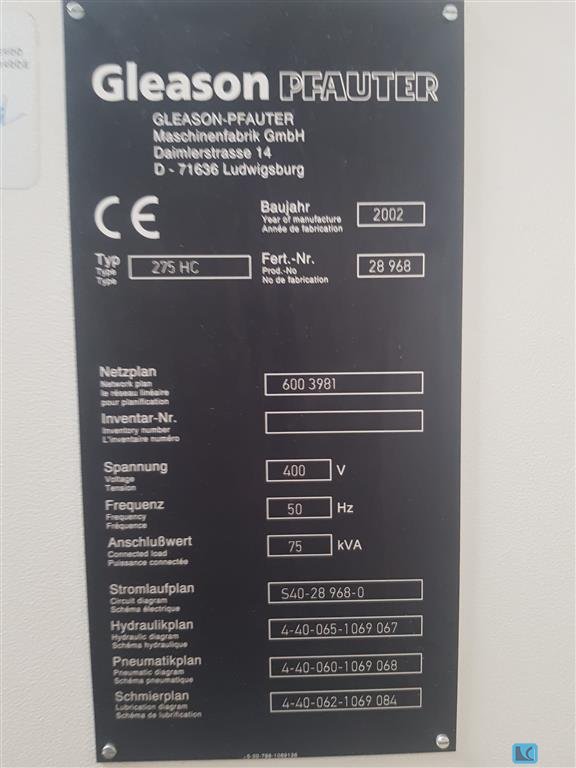

max. wheel diameter:275 mmgear width: mmmax. module: weight of the machine ca.:9,4 tdimensions of the machine ca.:3,7 x 3 x 2,82 mmin. number of teeth:5 max. number of teeth:2000 range of tooth size:20 mmmax. gear width (internal machining):58 mmX-axis:325 mmy-axis:350 mmZ-axis:475 mmBevel gear milling machine Gleason Pfauter including Promot Automation

max. module:7 weight of the machine ca.:5 tworm grinding diameter:280-350 mmwidth of grinding worm:84-104 mmmin. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mmmax. workpiece weight:60 kgwithout filter

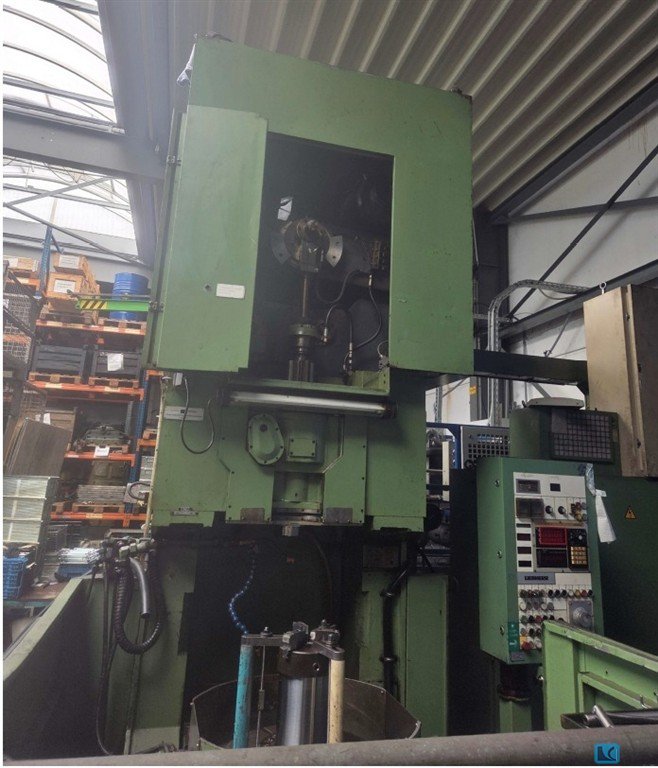

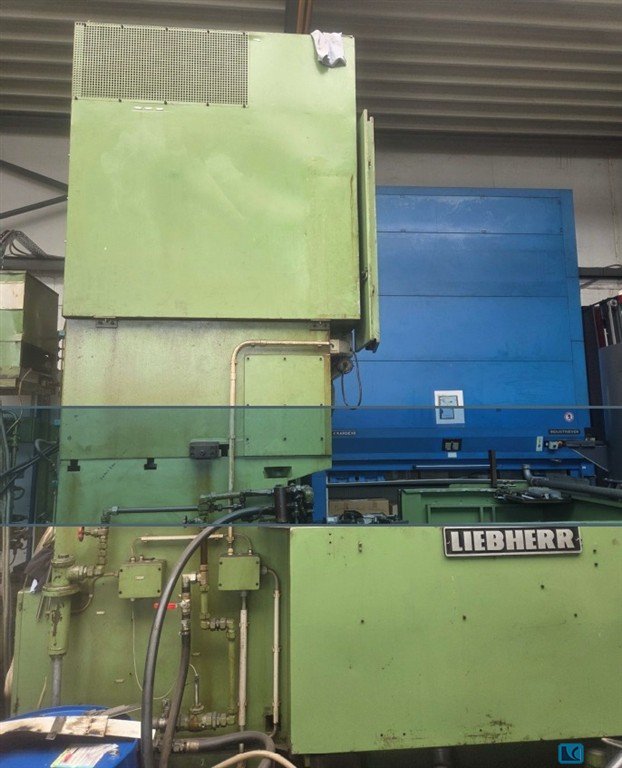

max. wheel diameter:780 mmgear width:130 mmmax. module:10 weight of the machine ca.:8,5 tno. of strokes:30 Hub/minHier fully functional machine, Little usedThere are some Tools and Change gearsLiebherr WSC501 CNC gear shaping machine, used, ready for useManufacturer: LiebherrType: WSC 501Mach.- No.: 4407/05Year of manufacture: 1985Details:Max. gear shaping module: 8mm(30°gears possible up to module 10°)Max. gear width: 130mmDiameter of the machine table: 500mmMaximum wheel diameter: 780mmShut height ? table: 650mmStroke rate min. 30DH/minContinuously adjustable max. 1500 DH/min.Operating voltage: 380VFrequency: 50HzControl voltage: 110VConnected load: 36 kVARated current: 55AWeight: 8500kgDimensions: approx. 4,85 x 3,655 x 3,78(width x depth x height in m)The machine has seen only very limited use in our company. It remains fully operational and can be demonstrated in function upon a ...

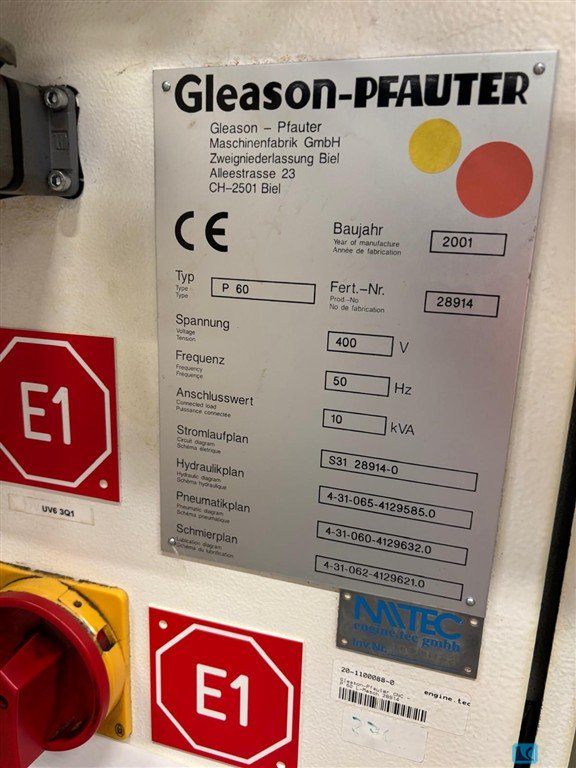

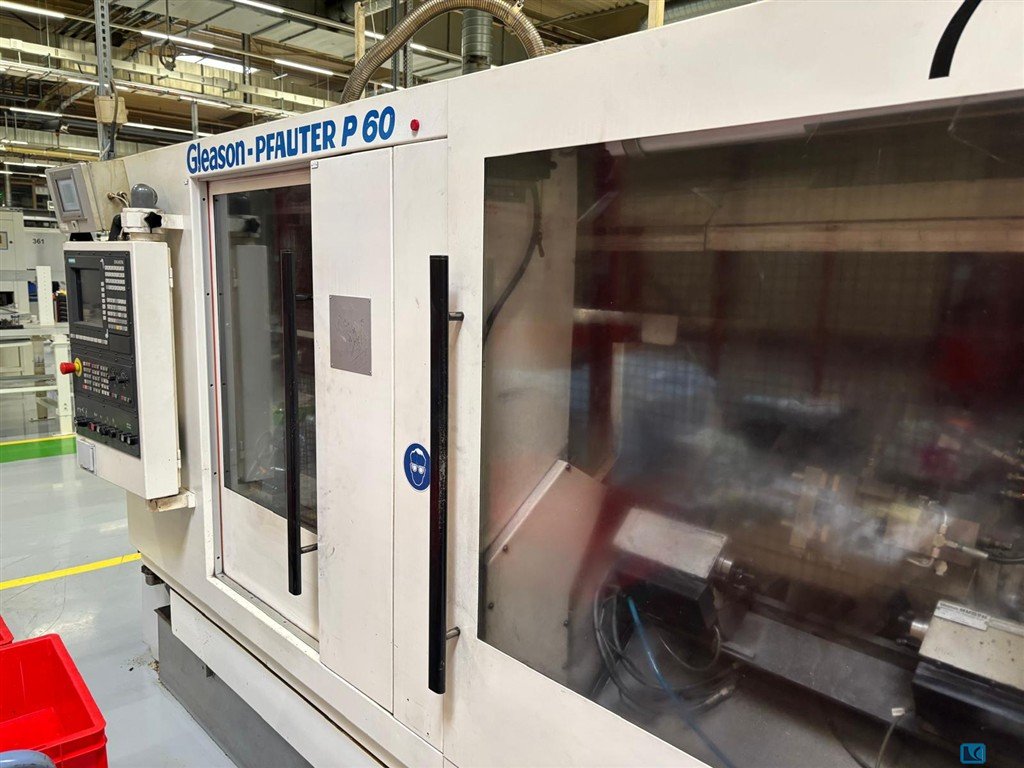

max. wheel diameter:80/120 mmmax. module:2,5 max. top circle diameter:65 mm:22 mm:140 mm:120 mmslide travel axial ( Z-axis ):320/400 mmDimensions (L/W/H):3270 x 3240 x 2020 mmweight of the machine ca.:6 tP60 - The compact all-rounder for wheels, shafts and wormsThe P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms.with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1

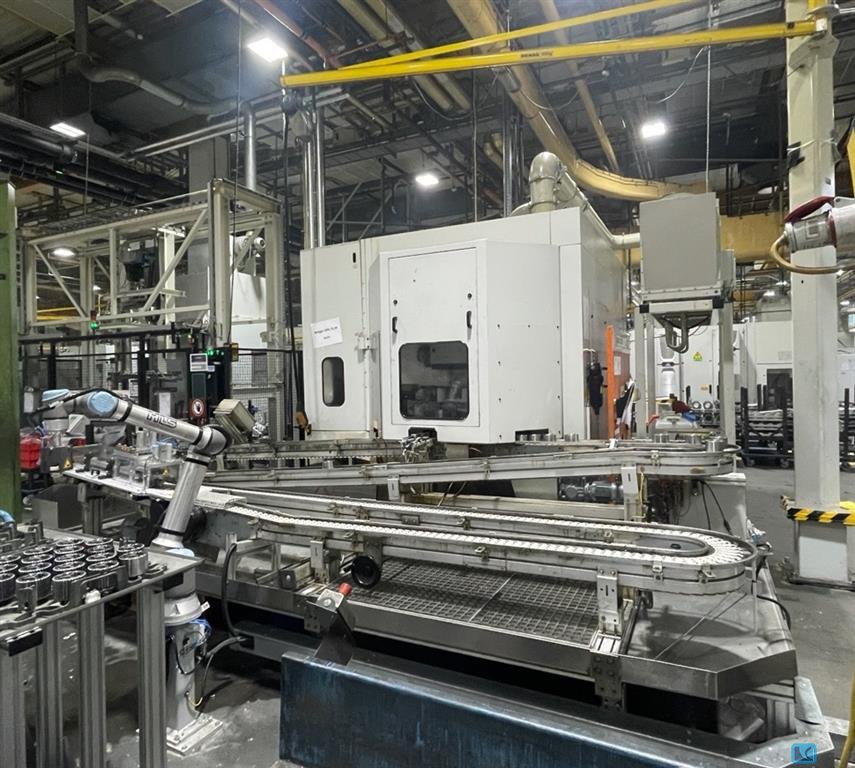

max. wheel diameter:150 mmgear width:350 mmmax. module:4 total power requirement:48 kWweight of the machine ca.:13 tdimensions of the machine ca.:4,88 x 4,40 x 3,56 mspindle turning speed range:100-1000 U/minInfeed and outfeed chain conveyor, with tool holders, chip conveyor, hydraulic unit and air conditioning.

max. wheel diameter:600 mmmax. module:6 weight of the machine ca.:0,9 tdimensions of the machine ca.:1,52 x 0,91 x 1,45 m

weight of the machine ca.:8,5 t
