máquinas e instalaciones para la ingeniería de procesos usadas para la venta (7,558)

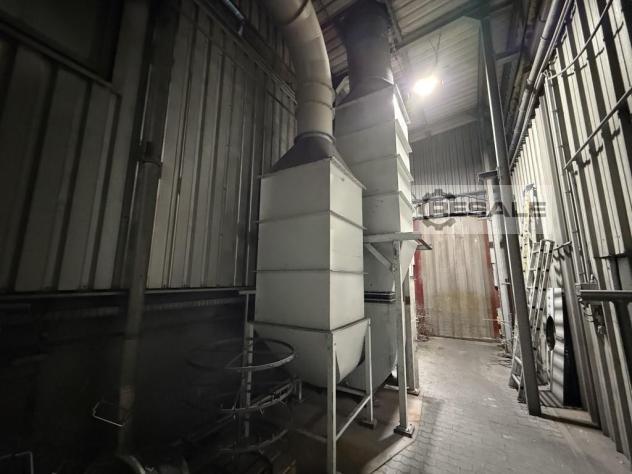

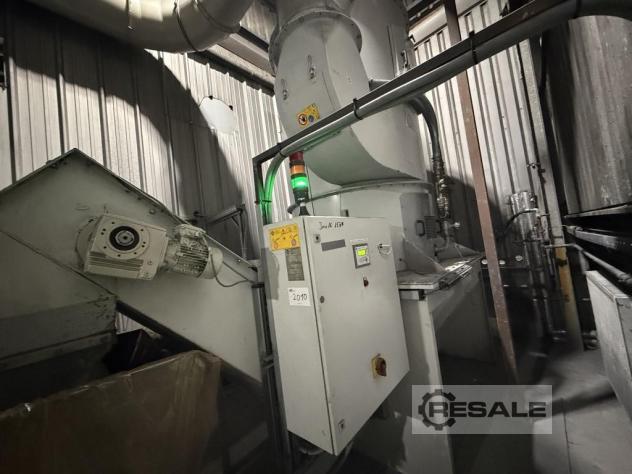

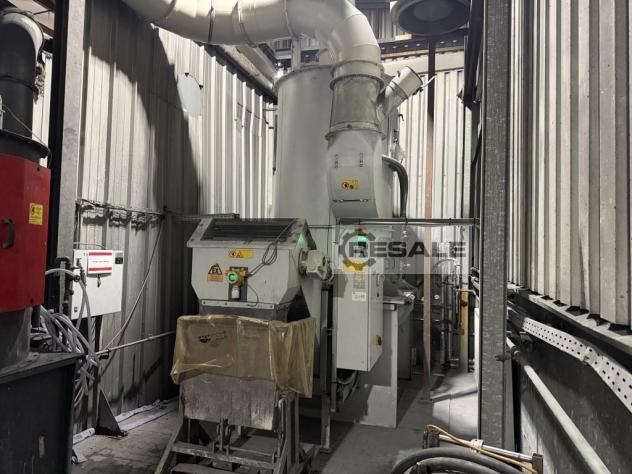

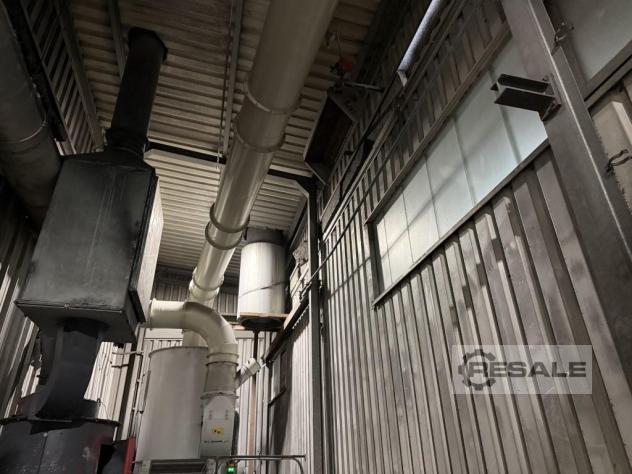

KELLER, separador húmedo, fabricado en 2020, con tuberías y separado. Unidad de filtro 2

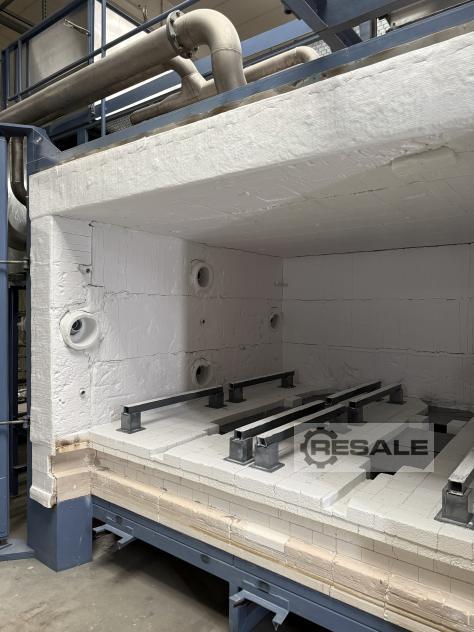

Fabricante: ELIOG Tipo: KFG-5-1400 Año de fabricación: 1997 Carga eléctrica conectada: 32 kVA Carga conectada de gas: 1450 kW Temperatura máxima: 1400°C Estado de la instalación: buena, ha sido modernizada en varios pasos Podemos ofrecer la instalación completamente renovada.

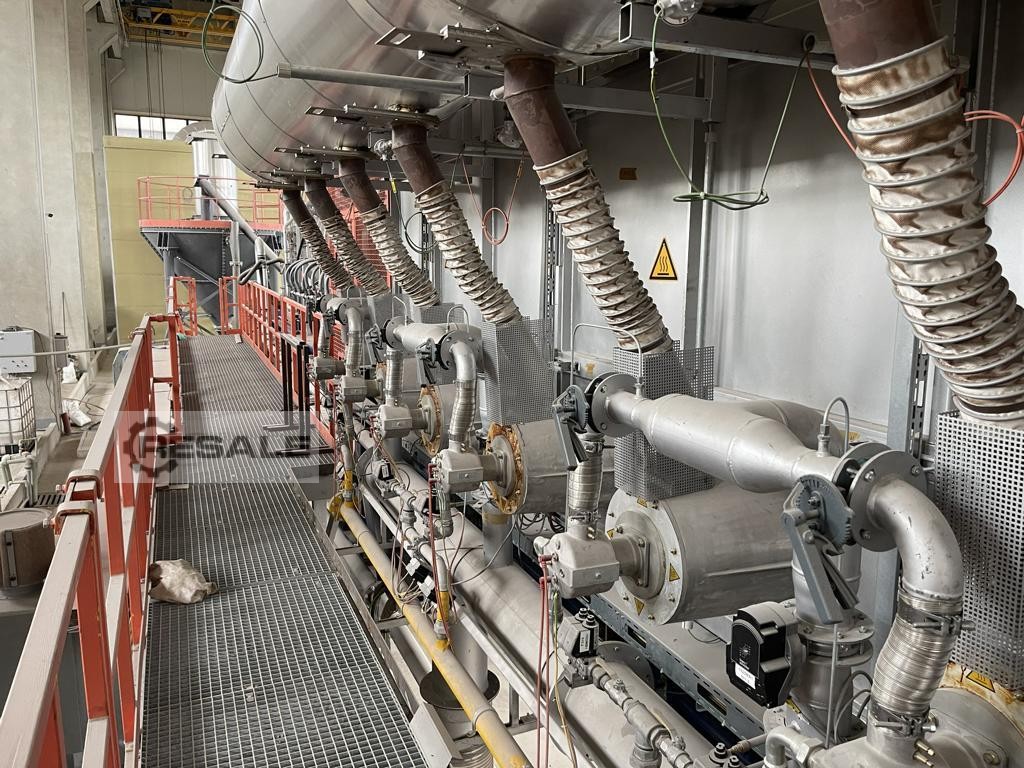

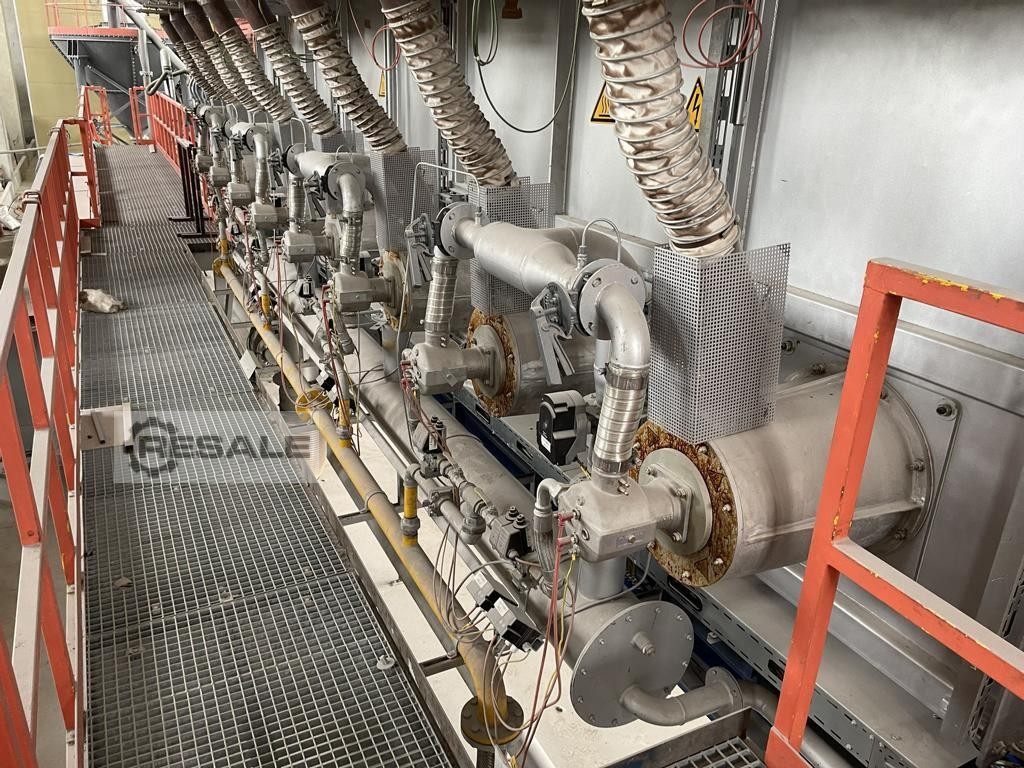

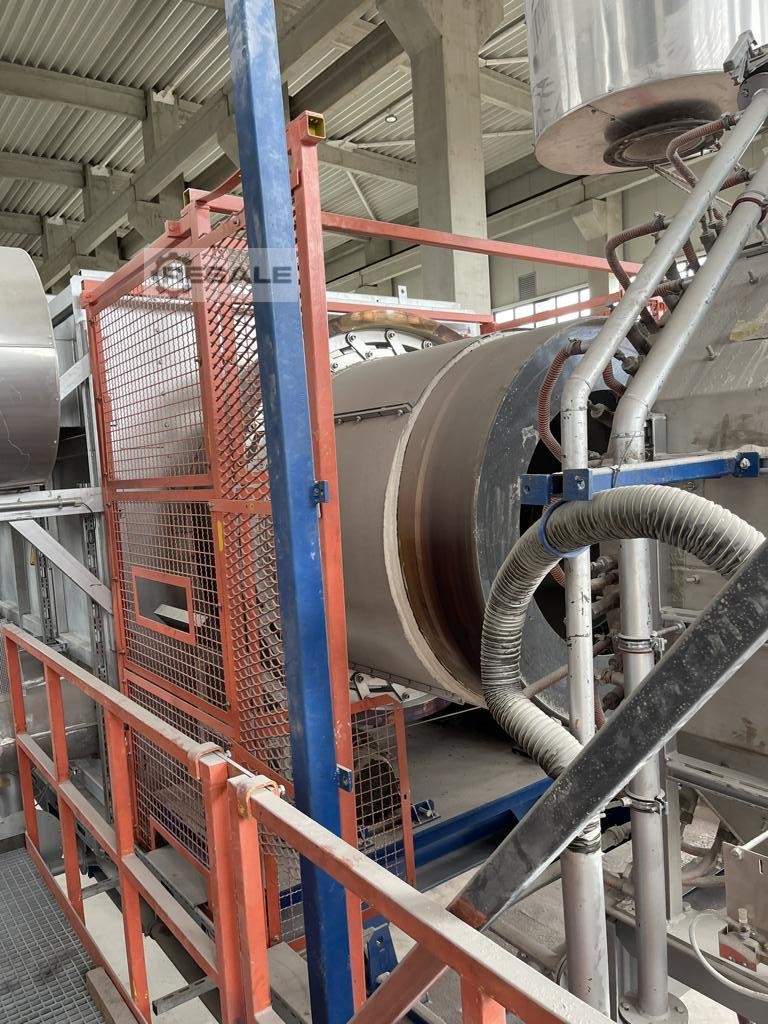

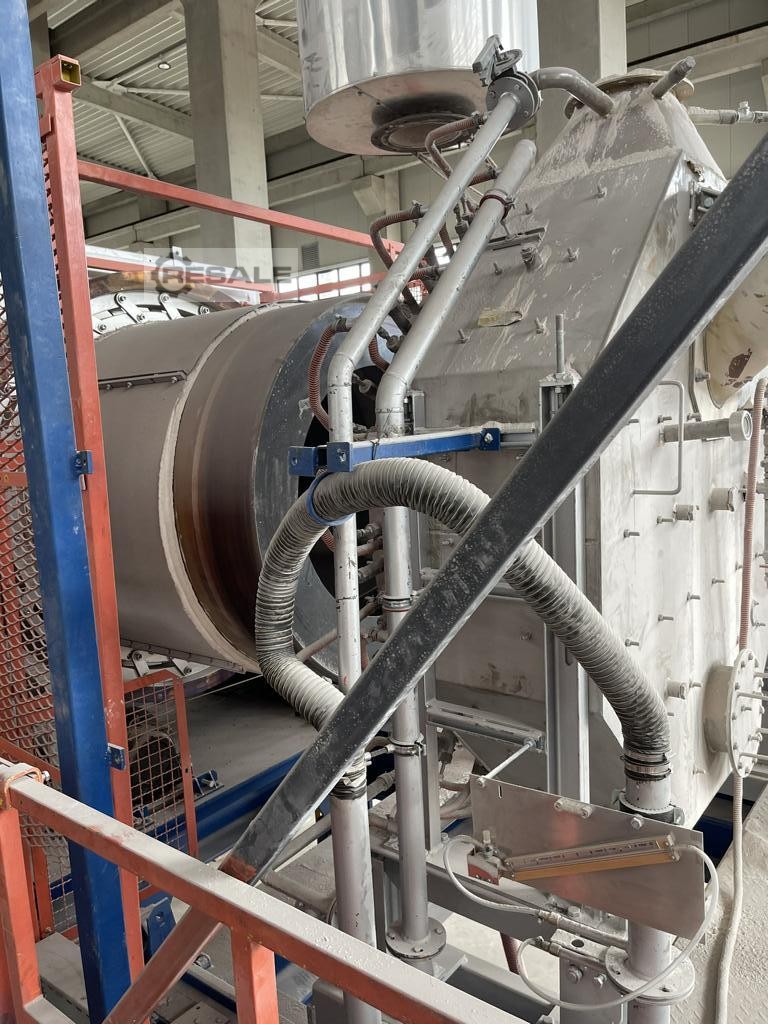

Fabricante: Riedhammer Modelo: DRA 8/150 Año de fabricación: 2021/2022 Horario de funcionamiento: 10:00 h Estado: Mint Calentado por gas Incluía: alimentador de materiales, silo, filtro de escape, chimenea, sistema de refrigeración por agua

Centrifugal pumps for pumping beer, water or other low-viscosity media. Available in many performance and pressure ranges. Manufacturer: Hilge/Grundfos/KSB/Fristam/Alfa Laval Please let us know your application (medium, capacity, delivery head) and we will find a suitable solution for you., Material: Pump housing and impeller in stainless steel, Position: free standing/mounted on base, Features: Connections as flange connection or milk pipe screw connection, optional: self-priming/splash guard/chassis/frequency converter

Prominent water treatment plant, consisting of: 1. Softening: The raw water is fed into the double softener. Only one bottle is ever in operation and the other is in regeneration or stand-by. In the softener, calcium and magnesium are replaced by sodium. The system has a volume counter that switches to the other bottle when the preset quantity is reached. Regeneration takes place with saline solution from the brine tank. The value at the outlet is 0°dH. 2. reverse osmosis: Reverse osmosis fills the permeate tank with demineralised water, so-called permeate. Depending on the raw water quality, water temperature, condition of the membrane and correct setting, different conductance values and operating pressures result. The following flow rates are set during commissioning: Permeate 600 l/h, concentrate 200 l/h, corresponding to a yield of 75%. 3. permeate tank and ozonisation: The unpress ...

Cylindroconical stainless steel tank, most recently used for settling diatomaceous earth. Fitted with drainage connections in the cylindrical section and aeration connections in the conical section., Additional title: KG settling tank, Content: 4450 l, Max. working pressure: 80 °C, Length: 1710 mm, Width: 1710 mm, Height: 3550 mm, Weight: 450 kg, Material: stainless steel 1.4301, Position: vertical cylindro-conical tank, Base construction: on pipe feet, Features: manhole on top, 4 shell-de-watering-connections, 4 aeration-connections at the cone

Vertical stainless steel tank with agitator, most recently part of a microbiological wastewater treatment plant., Additional title: Vertical stainless steel agitator tank, Capacity: 50000 l, Length: ca. 3,2 m, Width: ca. 3,2 m, Material: Stainless steel, Position: Vertical, Features: Agitator

Vertical stainless steel tank with agitator, most recently part of a microbiological wastewater treatment plant., Additional title: Vertical agitator tank from stainless steel, Capacity: 100000 l, Material: Stainless steel, Position: Vertical, Features: Agitator

Vertical stainless steel tank, most recently part of a microbiological wastewater treatment plant., Additional title: Vertical stainless steel tank, Capacity: 150000 l, Material: Stainless steel, Position: Vertical

Bioreactor with pH, oxygen and temperature measurement. Membrane aerators are also included., Additional title: Vertical stainless steel tank with membrane ventilators and pump system, Capacity: 240 m³, Width: 7,1 m, Material: Stainless steel, Position: vertical, Features: Membrane aerators; pH measurement; oxygen measurement; temperature measurement; pump station inlet

Vertical stainless steel tank, most recently part of a microbiological wastewater treatment plant., Additional title: vertical stainless steel tank, Capacity: 100000 l, Material: Stainless steel, Position: Vertical

Vertical stainless steel tank, most recently part of a microbiological wastewater treatment plant., Additional title: vertical stainless steel tank, Capacity: 100000 l, Material: Stainless steel, Position: Vertical

Station for preparing flocculation aids.

Vertical stainless steel tank, most recently part of a microbiological wastewater treatment plant., Additional title: Vertical stainless steel tank with agitator, Capacity: 70000 l, Length: appr. 3,8 m, Width: appr. 3,8 m, Material: Stainless steel, Position: Vertical, Features: Outlet pump 2,2 kW, (flow rate 19m3/h); Agitator

Sewage sludge tank made of stainless steel, with insulation, agitator and side tapping., Additional title: Stainless steel tank with insulation, Capacity: 100000 l, Operating temperature: 80 °C, Material: Stainless steel, Position: Standing on concrete foundation, Base construction: Cylindrical tank with flat bottom, Features: Insulation with stainless steel cladding, feed pump (volume flow 12m3/h); agitator, ladder with back protection, tank top railing,

Decanter centrifuge for thickening municipal, industrial and biological sludge, Additional title: Sludge dewatering system, Capacity: 15000 l/h, Weight: 640 kg, Position: To be mounted on the customers substructure, Features: Operating platform

Kaeser air compressor, Additional title: Screw compressor

Decanter centrifuge for thickening municipal, industrial and biological sludge, Additional title: Sludge dewatering system, Throughput capacity: 15000 l/h, Weight: 545 kg, Position: To be mounted on the customers substructure, Features: Operating platform

horizontal tubular heat exchanger, Additional title: for CIP or hotwater, Media flow: 500 hl/h, Working pressure orifice baffle: 10 bar, Working pressure piping: 8 bar, Working temperature piping: 200 °C, Length: 1,05 m, Width: 0,6 m, Height: 1,1 m, Weight: 300 kg

Refrigeration plant with 70 kW complete with compressor, condenser, in-house cooling tower, plate heat exchanger for glycol cooling and control cabinet. Refrigerant: Ammonia, Additional title: Refrigerant: Ammonia, Cooling capacity: 70 kW, Design to: -8 °C, Design tc: 27 °C, Power: 15 kW, Operation / Control: Control cabinet with hardware control, Features: Compressor, condenser, plate heat exchanger, glycol cooler, in-house cooling tower, control cabinet

Two-stage plate heat exchanger. First stage - Heating: hot water / product Product inlet approx 61-62°C, outlet approx 72°C, flow rate 600 hl/h; Hot water inlet approx 72,5°C, flow rate 750 hl/h Second stage - Regeneration: product / product Product inlet approx. 0-4°C, product outlet approx. 61-62°C, flow rate 600 hl/h; Product inlet approx. 72°C, product outlet approx. 11-14°C, flow rate 600 hl/h, Additional title: 2-stage heat exchanger, Capacity: 600 hl/h, Hot water: 750 hl/h, Operating pressure: 21 bar, Operating temperature: 100 °C, Length: 2,15 m, Width: 0,95 m, Height: 2,15 m, Weight: 5000 kg, Material: EPDM HT / NBR / 1.4439

Water degassing module. Suitable for integration into existing control systems., Additional title: cold degassing, Capacity: 5000 l/h, Residual oxygen content: 0,03 mg/l, Column volume approx.: 300 l, Operating temperature: 95 °C, Operation / Control: PLC / visualization by customer, Material: Stainless steel 1.4301 (AISI 304), Base construction: Height-adjustable feet, Features: Two-chamber column; water pump; panel
