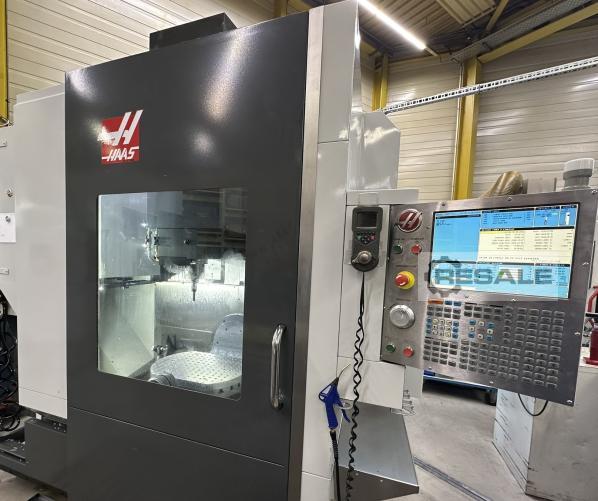

Centros de fresado CNC HAAS UMC-750

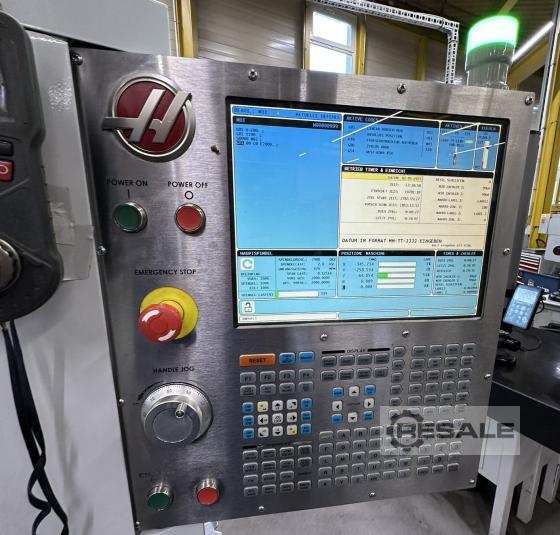

CNC controller: Haas Control
Axes
X-axis travel mm: 762
Y-axis travel mm: 508
Z-axis travel mm: 508
C-axis degrees: 360º (± 0.001°)
B-axis degrees: +120º to -35º (± 0.001°)
Distance spindle nose - table surface mm: 610
Rapid traverse m/min: 22.9

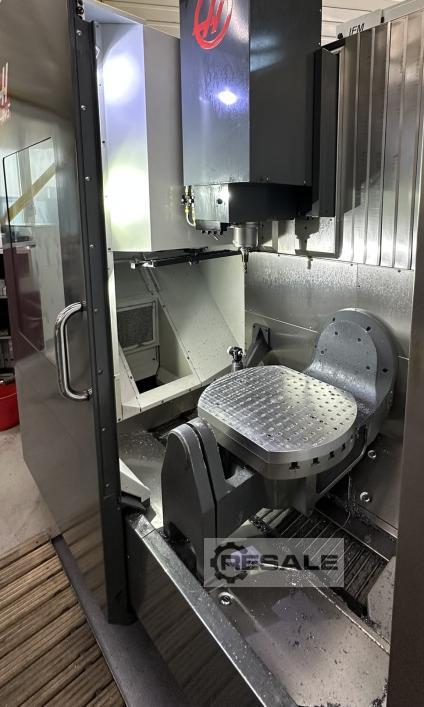

Worktable
Number of pallets: 1
Table dimensions mm: Ø 500
Maximum workpiece size (D x H) mm: 686 x 508
Max. workpiece weight kg: 300
Spindle
Spindle speed rpm: 8.100
Spindle drive power kW: 22.4
Spindle torque Nm: 2.514
Tool system
Tool holder: SK-40
Tool magazine slots: 40
With free neighboring places mm: 127
With occupied neighboring places mm: 64
Max. Tool Length mm: 305
Max tool weight kg: 5.4
Tool-to-tool time s: 2.8
Chip-to-chip time s: 3.6
Equipment
Electronic Handwheel
Chip conveyor
Rinsing gun
351248314 Mist collector
351248314 Workarea light
CE conformity
Inner/outer air blast
RENISHAW OMP 40-2
RENISHAW OTS Optical tool setter
Haas Test Bar
Cooling
Tank capacity: 208 L
Machine running times
Under power: 10.781
Operating Time: 1.853
Basic machine dimensions / weight
Length mm: 4.270
Width mm: 2.350
Height mm: 2.800
Weight kg: 7.000
seller offer No. resale CNC0647
