Prensas hidráulicas de un montante GAP GöPPINGEN CZ 100/30

Pressure: 100 t Stroke: 400 mm Press force 1000 kN
Stroke 400 mm
Clear dimension 600 mm
Installation height max./min. 590 / 210 mm
Closing speed 100 mm/s
Working speed 10 mm/s
Retraction speed 160 mm/s
Drive power 15 Kw
Table area 800 x 500 mm
Plunger area 800 x 500 mm
Cushion force 300 kN
Cushion stroke 150 mm
Cushion speed 30 mm/s
Machine dimensions 1600 x 1700 x 2930 mm
Machine weight approx. 5500 kg

SIEMENS safety controller

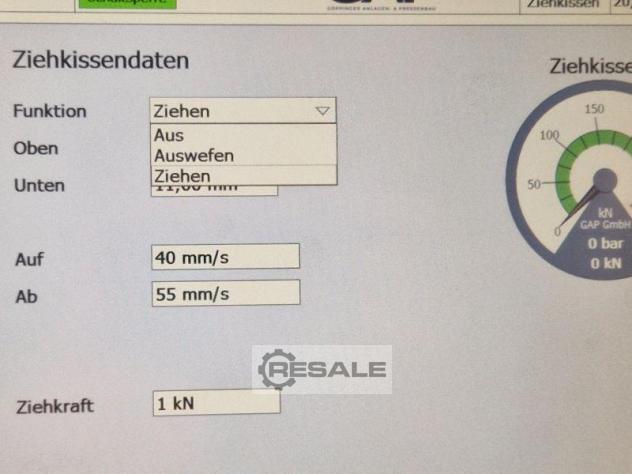

Input of part data such as speed, pressing force, etc. via 12" touch panel
Stepless switching from rapid to working speed
Stepless programming of the pressing force 15 - 100%
Integrated tool management for 5000 tools
Safety two-hand transmission mounted on stand
Sliding side doors
Light barriers installed in the side doors
Control cabinet with control on the stand
Operating modes:
Set-up operation
Single stroke with protection functionality
Single stroke in 1-stroke operation
Single stroke in 2-stroke operation
Optional automatic operation
seller offer No. resale 169790586
