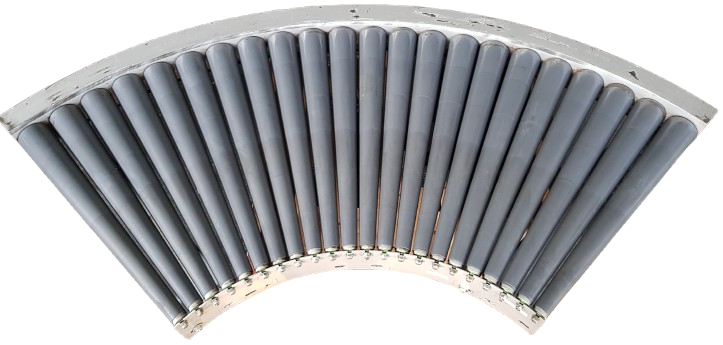

90°/180°-660-600 IR500 Curva de rodillo división cerrada a la derecha o a la izquierda

roller curve right or left tight division 90°/190°-660-600 IR500

RA2314

Make:
Running direction: 90° right running/ left running
Roller width (RB): 600 mm conical, plastic coating
Nominal/outer width (NB): 660 mm
Center roller axle distance: 60mm, 3mm roller distance
Inner radius (IR): 500 mm
Overall height frame: 120 mm
Height including motor: 400 mm
Motor MOVI-Mot 3x300-500V 0,25kW 1400 u/min max
Brake 220-240V
Gear motor: SEW
Conveyor speed: 0.6 m/s
2 90° curves can be screwed together to 180°
Optionally available:
Supports Sideguides
Sideguides
Frequency converter for stepples speed controll
Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, Gattingerstreet 11 B & C, 97076 Würzburg
Features:
Construction year: 2001
condition: good (used)
Nominal / inner radius in mm: 500
Nominal / outside width in mm: 660
Roll width in mm: 600
angle: 90°
Driven: YES
scope of delivery: without supports and side guides
